Budget MTM Doors – Technical Specifications

1. Bottom Roller for Steel System
Body made from galvanized structural steel, designed for snap and screw fixing. The moving part is adjustable within the 0-32 mm range by means of an adjusting bolt and is provided with an anti-jump feature. The roller has a wheel of a high-strength plastic with an embedded sealed ball bearing. Resistance: up to 60 kg/2 rollers, up to 50,000 open/close cycles.

2. Twin Wheel Top Guide
Body made from galvanized structural steel, designed for snap and screw fixing. The guide features wheels of high-strength plastic and vibration damping rubber. The moving part allows the wheels to be adjusted within the 0, 16, 32 mm range. The wheels, fixed to an elastic moving arm, precisely follow the track.

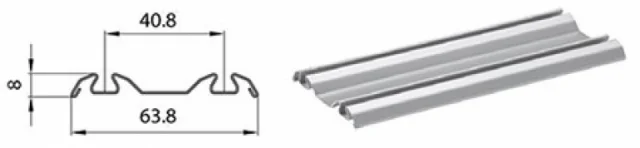

3. Steel Double Bottom Track.
Track made from galvanized zinc-coated steel sheet, fi-nished with polyester paint or simulated wood film. Material thickness: 0.5 mm. Track length: 5000 mm.

4. Steel Double Top Track.
Track made from galvanized zinc-coated steel sheet, fi-nished with polyester paint or simulated wood film.

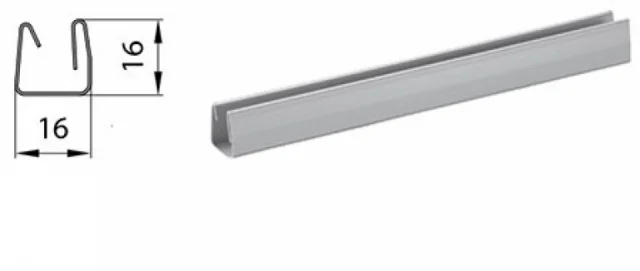

5. Steel Rail.
A rail for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film. Material thickness: 0.5 mm.

6. Economy Steel Stile, 2.75 m.
A stile for 4 or 10 mm mirror panels to steel door systems. Made from galvanized zinc-coated steel sheet, finished with polyester paint or simulated wood film.

7. Universal Soft Closer.
It ensures that the door leaf closes softly to its end position. The soft closer features an air damper, which gu-arantees durability and performance stability throughout its useful life.
The design of the soft closer body allows it to be used as a left-hand or right-hand closer. The installation of the soft closer on the steel system-based door leaf is possible with the use of the steel system door closer accessories 099245. The soft closer is available in two versions:
099233 – soft closer for doors of up to 25kg in weight.
099234 – soft closer for doors of 25 to 50kg in weight. Application: S100, A100, A200.
Availability: continuous.

(please note: not included as standard but can be purchased)
